4. Creating Tudat Applications¶

Now that you’ve installed Tudat, you can run all of the example applications and unit tests at your leisure. On this page, we will describe how to create other Tudat applications, specifically tuned to your research/education project. There are two broad options for creating applications: pulling an existing application from Github (or elsewhere), or creating an application from scratch. Below, both are discussed. New applications are typically added to the tudatBundle/tudatApplications folder, which is empty by default.

Note

It is not the goal of this page to give a full-fledged introduction to repository management, git or Github. Much more details can be found online, for instance in the Resources to learn Git or Github Help. An extensive online book on git is given here This page is meant to serve as a starting point for using git with Tudat and using examples that are very close to a typical user’s first Tudat experience.

4.1. Getting an Existing Tudat Application¶

Below, we discuss how to retrieve an application from an existing Github repository, how to retrieve any updates that may come available after you’ve downloaded it, and how to send the code to your own Github account. As an example, we will use the NumericalAstrodynamicsAssignments_2019 repository. Depending on whether your repository is to be public or private, follow Step 1a, or Step 1b.

Warning

IMPORTANT! When setting up a repository for use in the AE4866 or AE4868 courses, it is required to set the repository to private (and follow step 1b, not 1a).

Step 1a (for a public repository): Fork the code on Github

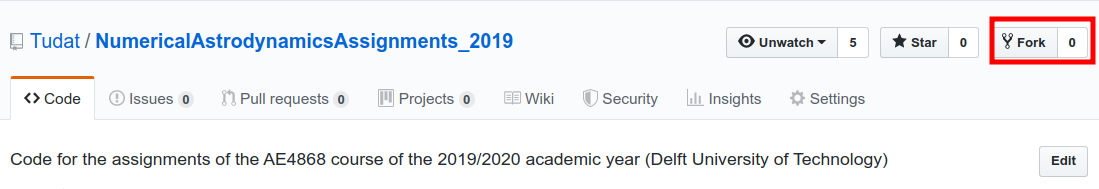

The first step in the workflow of retrieving a public application is to “fork” it. Forking means that you will create a copy on your own Github page, which is identical to the original. The reason why we do this is that, typically, you will not have permission to modify the original repository, and have to save any modifications you make under your own account. To do so, first make sure you are logged into Github, and then go the repository page for the application you want to retrieve, and click the “fork” button at the top (see screenshot below).

After doing so, you will have created your own local version of the NumericalAstrodynamicsAssignments_2019 repository.

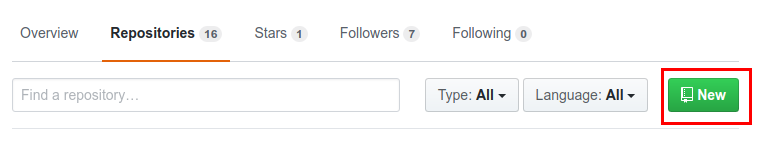

Step 1b (for a private repository): Import the code on Github

The first step in the workflow of retrieving a private application is create an empty new Repository, by going to https://github.com/YourName (fill in your own name), and clicking New under Repositories (see screenshot below):

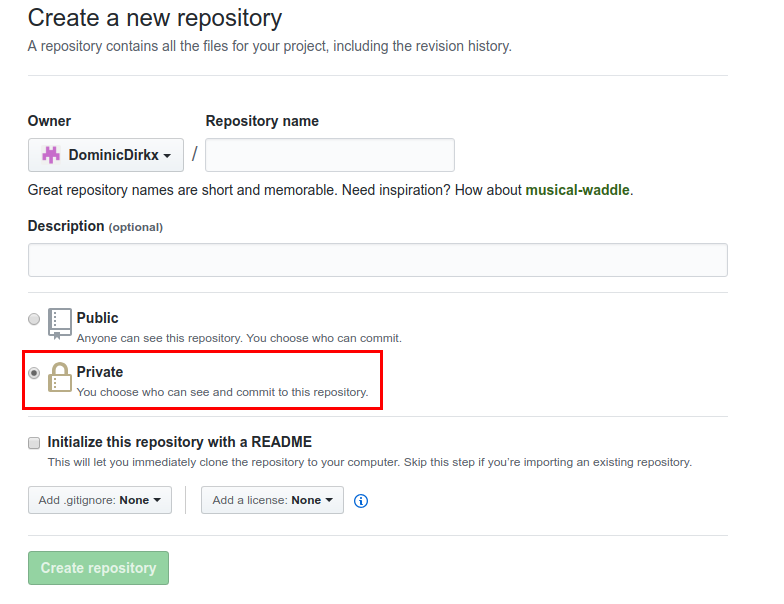

Type a name for your repository (make sure it is descriptive, so not NumAstroAssignment, but, for instance, NumericalAstrodynamics2019_INSERT_NAME), and set the repository to private (see screenshot below).

You may, but need not, write a repository description. Click Create repository.

On the bottom of page you are redirected to, click Import Code. Fill in the name of the repository from which you want to retrieve code (for instance https://github.com/Tudat/NumericalAstrodynamicsAssignments_2019), and click Begin Import. Once the import is successfully completed, you will receive an e-mail, with a link to your new, private, repository.

For a private repository, you can control who can view/modify your repository. To add other users to your repository, go to the Settings/Collaborators of the repository, and add other users that you want to invite.

Warning

IMPORTANT! When setting up a repository for use in the AE4866 or AE4868 courses, invite @dominicdirkx and @transferorbit. For these courses, it is prohibited to invite your fellow students to a private repository for an individual assignment.

Step 2: Clone the application to your system

Now, the next step is to create a version of the code on your computer, which is linked to your own Github page. Using the terminal (or the tudat_shell.bat program when using Windows), navigate to the tudatBundle/tudatApplications directory. Then, use the following command in the terminal:
git clone https://github.com/YourName/NumericalAstrodynamicsAssignments_2019.git
where YourName should be replaced with your Github account name (so that it corresponds to the URL to where you’ve forked the repository).

Step 3: Adding the application to your Tudat compilation

Open the top-level tudatBundle/CMakeLists.txt and add the directory to the bottom of the file using the folder where you’ve just cloned the repository to:
add_subdirectory( "${PROJECTROOT}/tudatApplications/NumericalAstrodynamicsAssignments_2019")
When opening the tudatBundle project in Qt, you’ll see your new application(s) added to the project tree, and the corresponding executable added to the list of applications you can run.

4.2. Pulling and Pushing Application Code¶

Now, we are ready to discuss two distinct but related aspects of developing your code: retrieving modifications from the original repository, called pulling (here: https://github.com/tudat/NumericalAstrodynamicsAssignments_2019.git) and uploading your modifications to your own repository, called pushing (here: https://github.com/YourName/NumericalAstrodynamicsAssignments_2019.git).

Step 1: Setting up your remotes

In git, a remote is an address of an external repository (in this case on Github). You can set any number of remotes you like for a given repository. You can view all your remotes for a given Git repository by using the
git remote -v
command in your terminal. Running this command will likely result in the output (for now, forget about the distinction between pull and fetch):
origin    https://github.com/YourName/NumericalAstrodynamicsAssignments_2019 (fetch)
origin    https://github.com/YourName/NumericalAstrodynamicsAssignments_2019 (push)
Typically, you will have two: an origin and an upstream, which is also the convention we’ll stick to here. The origin remote is the one from where you’ve cloned the repository, in this case your own Github version of the NumericalAstrodynamicsAssignments_2019 repository. This remote will have been set automatically when cloning the code. With the way the repository is set up, you are ready to update your own Github version of NumericalAstrodynamicsAssignments_2019. To also retrieve new code from the original tudat repository, we need to add an additional remote, the upstream. To do so, use the following terminal command:
git remote add upstream https://github.com/tudat/NumericalAstrodynamicsAssignments_2019.git
Rerunning the git remote -v command should now result in:
origin    https://github.com/YourName/NumericalAstrodynamicsAssignments_2019 (fetch)
origin    https://github.com/YourName/NumericalAstrodynamicsAssignments_2019 (push)
upstream  https://github.com/tudat/NumericalAstrodynamicsAssignments_2019 (fetch)
upstream  https://github.com/tudat/NumericalAstrodynamicsAssignments_2019 (push)
If it is the first time you use git on your computer, you are required to identify yourself. This can be done with the following commands:
git config --global user.email "you@example.com"
git config --global user.name "Your name"
If you forget to do so, you will encounter the following error message when trying to commit your code (see next step), asking you to enter the two lines of code above:
Fatal: unable to auto-detect email address

*** Please tell me who you are.

Run

   git config --global user.email "you@example.com"
   git config --global user.name "Your name"

to set your account's default identity.
Omit --global to set the identity only in this repository.

Step 2: Making local commits

Before you can push changes to your Github account, you must first commit (save) these changes locally on your computer. A commit provides a snapshot of the current version of the code, to which you can return at later points in time.

Tip

When finishing a part of the code to your own satisfaction, or making clear progress in your work, commit your code. This does not override any old or later commits, but will provide a way to go back to your current version of the code.

The first step in making commits is usually to check what has changed w.r.t. the previous commit. To check this, type the command:
git status

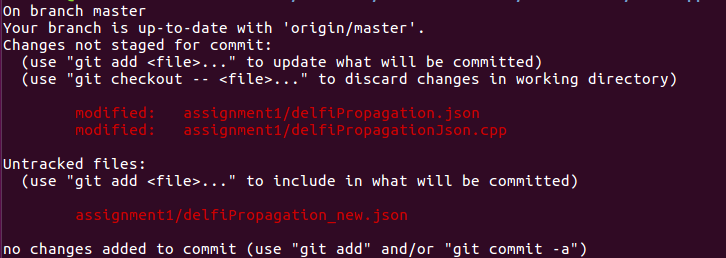

This should given an output similar to that given below:

In this example, we have modified two existing files, and created a new file.

Now, before committing, you must stage changes for commit. To stage all changes shown by the git status command for commit, use:
git add .

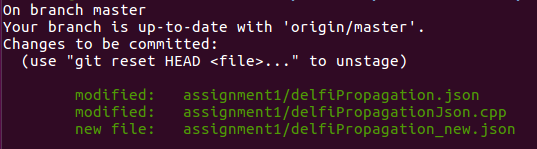

For the example given above, this will result in (after running git status again):

If you only want to stage a single file, or folder, use:
git add FolderName/
git add FileName.ext
where .ext is just an arbitrarily chosen extension. You can also use:
git add FolderName/FileName.ext
to stage a single file in a folder. You can combine as many git add commands as you like to stage all your files for commit.

Now, committing your code is done by:
git commit -m "Your commit text here"
The text between the quotes will show up in your commit log, and should ideally describe the current state of your code: which changes have you made since the last commit?

Step 3: Pushing your commits to Github

After committing the code, you will have made a snapshot of the current version of the code, on your local system only. If you want to share it with others, the best way is to push it to an online repository (typically Github). Assuming you’ve set up your remotes as defined above, you can use:
git push origin master
This will push your code to the origin remote. The master term denotes the current branch you are working on. Branch management is beyond the scope of this tutorial, and you may safely ignore these issues for now.

If you have set up your repository to be private, you will be prompted to enter your Github username and password. After a push is succesfull, you should see your changes on the Github page for your applications, available for everyone (in case it is public) or a selected few (in case it is private).

4.3. Updating Your Local Repository from Github¶

After following the above guide, you’ll have created a git repository on your computer, based on some remote from Github. Typically, commits are regularly done to Github repositories, and it may happen that you want to update your local code with the modifications of the remote. For this example, we’ll assume that there has been some modification of the upstream remote (i.e., at https://github.com/tudat/NumericalAstrodynamicsAssignments_2019), and that you want to update your local version of the code (both on your computer, and on your own Github page).

Step 1: Committing any local changes

Before pulling the latest code from Github, commit any modifcations you have made, using the git add and git commit commands described above. Not doing so will cause the following error message when pulling:
error: Your local changes to the following files would be overwritten by merge:
   file_name
Please, commit your changes or stash them before you can merge.
Aborting
This error is given as a safety measure, since pulling the latest version of the code may inadvertently, and irreversibly, overwrite your own changes.

Note

In case it is your intention to overwrite the changes you have made locally, you can use the command git reset --hard. Note however, that this step is irreversible!

Step 2: Fetching and Pulling the Remote

The next step in updating the code is to type:
git fetch upstream
The fetch command does not update the code on your computer, but makes your local git repository aware of any changes make to a remote (the upstream in the above example). Next, you will pull the code from the upstream with the following command:

git pull upstream master

Note that we are still assuming that only the master branch is relevant for our current application. The pull command will have one of two possible outputs (assuming you have correctly performed step 1). Either no error is given, and the pull has been succesful, or there are conflicts with changes you have made, which will give the following error message:
Pull is not possible because you have unmerged files.
Please, fix them up in the work tree, and then use 'git add/rm <file>'
as appropriate to mark resolution, or use 'git commit -a'.
In case you get this message, go to step 3.

Step 3: Solving Conflicts (if needed)

As is often the case, changes you have committed on your own computer will not be compatible with changes that have been made to the remote you are pulling. The list of files with merge conflicts will be shown when using the git status command. The resulting merge conflicts are typically corrected manually, where the user decides how to update the code after a pull. A merge conflict will show up in your code as:
<<<<<<< HEAD
Remote modifications
=======
Your modifications
>>>>>>> master
Clearly, this code will not compile anymore. You can change this block to either:
Remote modifications
or:
Your modifications
or something else entirely, as you see fit for the case at hand.

After correcting all conflicts, use the git add and git commit commands to commit your merged code.

4.4. Creating a New Tudat Application¶

For some projects, you will want to start your own application repository from scratch. Here, we briefly explain how to set this up, while details of the code itself (e.g., CMake settings) are discussed in the following sections.

Step 1: Initializing the repository

To create a new git repository, use the terminal to navigate to the directory of this new repository and type:
git init
This will create a new, empty, repository in the current directory. Using the same git add and git commit commands as above, you can add files to the repository as you see fit.

Before (or after) doing so, you can add a .gitignore file to your repository (see Tudat repository for a typical example). This file can contain a list of files, directories, file extensions, etc., that git will normally ignore when using the git status or git add commands. For example, you may want to keep .dat files, or a bin/ directory outside of your repository. As an example, the tudatApplications directory is in the .gitignore list of tudatBundle, as application commits are not added to the bundle repository.

Step 2: Creating a Github Repository

Now that you’ve created a local repository on your system, you need to create a new Github project, to which you can push your code. On the Github main page, click Start a Project (make sure you are logged in first). You will be prompted to provide some baisc information on your new repository (and declare it public or private). After clicking Create Repository, your new (empty) Github repository will be created.

Now, we need to tell your local repository where this new Github project is located. Using the same tools as above, use the git remote add command to add your new repository as the origin. For instance:
git remote add origin https://github.com/UserName/MyNewTudatApplication.git
You are now free to push your code to this repository.

4.5. Writing Your CMakeLists, and Starting Your Code¶

The above guides show you how to push, pull, commit, etc., using the git version control system. In this last part of the guide on how to set up new applications, we will discuss the basic aspects that the CMakeLists.txt for your application, and your C++ code, must adhere to. Note that this part of the guide is primarilly relevant if you want to create your own application code from scratch. However, it will also provide insight into how/why to modify the CMakeLists.txt file for a project you’ve pulled from Github.

To make your life easier, we have created a TemplateApplication directory in the example applications. You can copy and past the CMakeLists.txt file (see file on Github) in this directory to your application. To adapt it to your specific needs, you will typically only need to make minimal modifications. Add the bottom of the CMakeLists.txt file, you’ll see:

# Add helloWorld application.
add_executable(application_HelloWorld "${SRCROOT}/helloWorld.cpp")
setup_executable_target(application_HelloWorld "${SRCROOT}")
target_link_libraries(application_HelloWorld tudat_gravitation tudat_basic_astrodynamics ${Boost_LIBRARIES} )

These lines of CMake code add an application to your project, which can then be compiled and run (note that lines starting with # are treated as comments in CMake). In this case, it is the helloWorld.cpp file, located in the ${SRCROOT} directory (which denotes the directory of the CMakeLists.txt file).

Note

Any C++ application must contain one, and only one, int main function. The file containing this function may contain any number of additional function definitions.

Often, it is only in these lines where you will modify the CMakeLists.txt file. As an example, say you want to add the code in the myNewTudatApplication.cpp file (located in the same directory as your CMakeLists.txt), and compile into an executable named application_MyNewApplication:

# Add myNewApplication application.
add_executable(application_MyNewApplication "${SRCROOT}/myNewTudatApplication.cpp")
setup_executable_target(application_MyNewApplication "${SRCROOT}")
target_link_libraries(application_MyNewApplication ${TUDAT_PROPAGATION_LIBRARIES} ${Boost_LIBRARIES} )

assuming you have already added your application to your Tudat bundle CMakeLists file (see Step 4 of Getting an Existing Tudat Application). Depending on the details of your application, the final line target_link_libraries may look slightly different. There are many options to change it, but for most Tudat applications it will be sufficient to use the above line, or:

target_link_libraries(application_MyNewApplication ${TUDAT_ESTIMATION_LIBRARIES} ${Boost_LIBRARIES} )

which is required if any of the state-estimation-related functionalities are needed (variational equations propagation, observtion models, acceleration partials, orbit determination, etc.). If you don’t need this functionality, using ${TUDAT_PROPAGATION_LIBRARIES} can save some compilation time.

Tip

When you receive a compilation error with the words undefined reference to ..., or Undefined symbols for architecture x86_64, this is typically indicative of the target_link_libraries being set incorrectly.

4.6. Adding More Files to Your Application¶

Note

This section assumes that you have already gained some basic knowledge and experience of (Tudat) code development.

At some point in the development of your application, you may reach a point where you don’t want to cram all your application code into a single file (like the myNewTudatApplication.cpp file in the application above), and you’ll want to spread your code over multiple files, as we do in Tudat. Here, we’ll show an example in which we want to add the code in the following files:

newFile1.cpp
newFile1.h
NewFolder/newFile2.cpp
NewFolder/newFile2.h
NewFolder/newFile2.cpp
NewFolder/newFile2.h

Unfortunately, it is not sufficient to add the correct #include statements in your code. Doing so, and not modifying the CMakeLists file, will result in the undefined reference error mentioned above. First, the following code must be added, just before your add_executable commands:

# Set the source files.
set(MY_NEW_APPLICATION_SOURCES
  "${SRCROOT}$/newFile1.cpp"
  "${SRCROOT}$/NewFolder/newFile2.cpp"
  "${SRCROOT}$/NewFolder/newFile3.cpp"
)

# Set the header files.
set(MY_NEW_APPLICATION_HEADERS
  "${SRCROOT}$/newFile1.h"
  "${SRCROOT}$/NewFolder/newFile2.h"
  "${SRCROOT}$/NewFolder/newFile3.h"
)

# Add static libraries.
add_library(my_new_application_libration STATIC ${MY_NEW_APPLICATION_SOURCES} ${MY_NEW_APPLICATION_HEADERS})
setup_library_target(my_new_application_libration "${SRCROOT}{AERODYNAMICSDIR}")

This code will add the library my_new_application_libration to your project. This library will contain the compiled code of the MY_NEW_APPLICATION_SOURCES source and MY_NEW_APPLICATION_HEADERS header files. Now, the final step, to allow these six new files to be used in your application, is to update the target_link_libraries to:

target_link_libraries(application_MyNewApplication my_new_application_libration ${TUDAT_PROPAGATION_LIBRARIES} ${Boost_LIBRARIES} )

Note

The names chosen here for the new source/header files, library, etc., are for illustrative purposes only. Feel free to modify them as you see fit.

As a final point, be aware that you may add any number of applications to your CMakeLists file (each with exactly one int main function. As an example, below is a selection of the SatellitePropagatorExamples CMakeLists.txt (slightly edited for readibility):

# Add Galileo constellation application.
add_executable(application_GalileoConstellationSimulator "${SRCROOT}/galileoConstellationSimulator.cpp")
setup_executable_target(application_GalileoConstellationSimulator "${SRCROOT}")
target_link_libraries(application_GalileoConstellationSimulator ${TUDAT_PROPAGATION_LIBRARIES} ${Boost_LIBRARIES} )

# Add JSON-based Apollo propagation
add_executable(application_ApolloEntryJSON "${SRCROOT}/apolloCapsuleEntryJSON.cpp")
setup_executable_target(application_ApolloEntryJSON "${SRCROOT}")
target_link_libraries(application_ApolloEntryJSON json_interface_library ${TUDAT_PROPAGATION_LIBRARIES} ${Boost_LIBRARIES} )

# Add simulated Earth orbiter simulated POD example
add_executable(application_EarthOrbiterStateEstimation "${SRCROOT}/earthOrbiterStateEstimation.cpp")
setup_executable_target(application_EarthOrbiterStateEstimation "${SRCROOT}")
target_link_libraries(application_EarthOrbiterStateEstimation ${TUDAT_ESTIMATION_LIBRARIES} ${Boost_LIBRARIES} )

In the same folder, three separate applications have been added.
